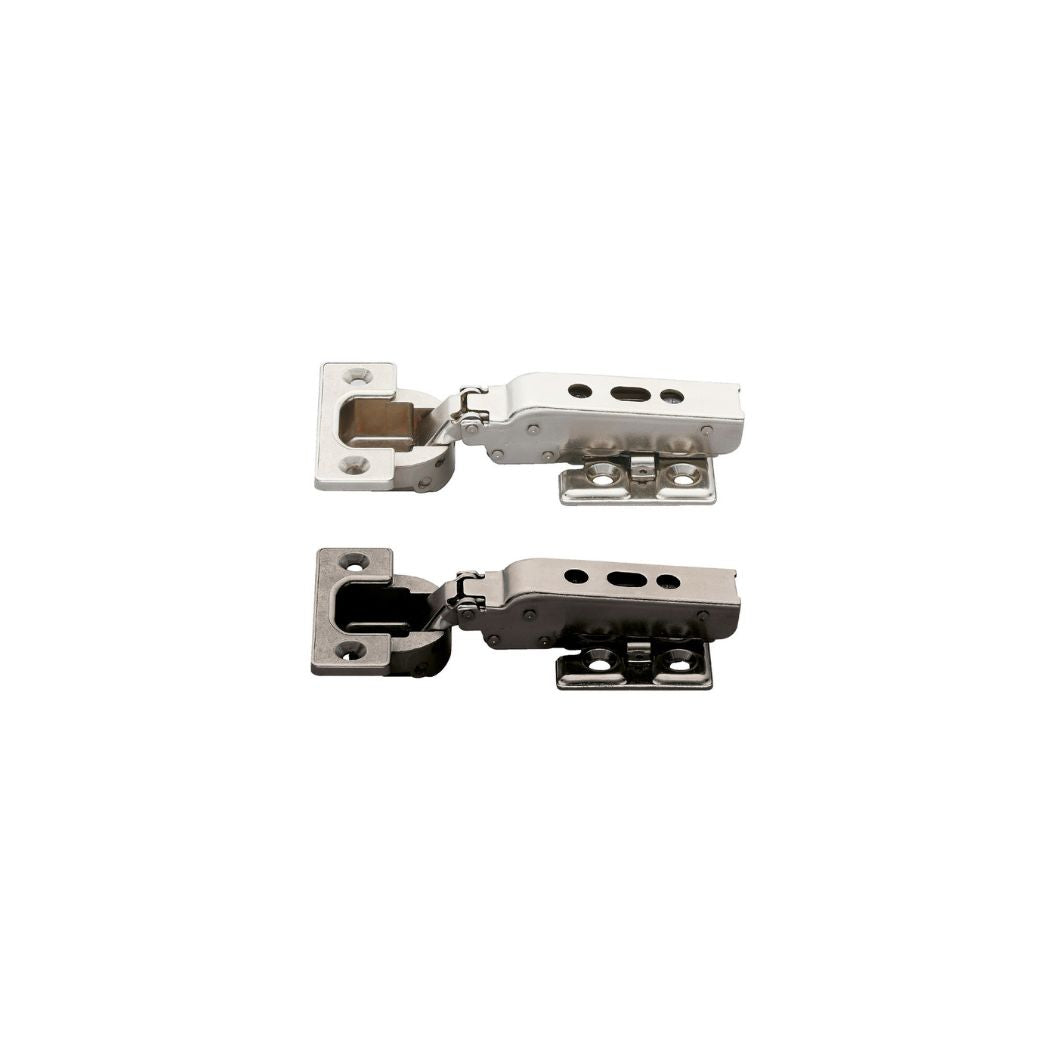

Support thicker, heavier doors with ease using this premium heavy-duty concealed hinge. It combines robust weight capacity with convenient, snap-on assembly.
-
Heavy-Duty Capacity: Reliably supports doors up to 25 kg (using 2 hinges) or up to 40 kg (using 3 hinges).
-
Easy Installation: Features a snap-on mount for simple, one-touch installation and detachment without needing tools.
-
Precision Adjustability: Offers a 3-way adjustment function via the mounting plate (Depth: +1.5/-2.5mm, Vertical: ±3mm, Horizontal: +0/-4mm) to ensure perfect door alignment.
-
Required Components (Sold Separately): You will need the J95-P6T mounting plate. Optional covers (J95SC-25GR, J95ZC-GR) and glass door face plates (GH-J95FP) are also sold separately.
-
Recommended Hardware: M5 countersunk or raised countersunk head screws (not included).
